特征

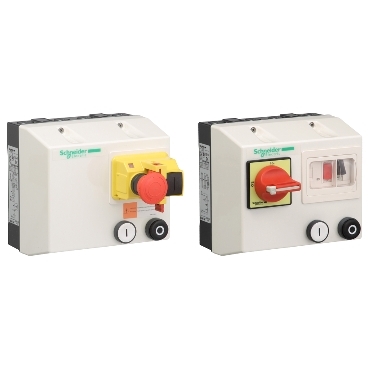

TeSys LG, LJ 封閉式安全DOL電機起動器有多種組成,包括:
不可逆封閉式安全電機啟動器(帶隔離控制旋轉開關)
TeSys LG1系列:可鎖定隔離開關、接觸器和高達9KW的熱磁斷路器
GVAX欠壓跳閘是可選的
GV2 SN指示燈是可選的
外殼在位置“1”通電時無法打開
可鎖定緊急停止
短路和過載保護
知識產權55度保護
符合國際電工委員會60947-4-1和國際電工委員會60204-1(機械安全-機械電氣設備)
對于380至415伏之間的電源電壓,控制電路在相位之間預先布線。對于任何其他電源電壓,控制電路必須由客戶接線
封閉式安全電機啟動器(帶有用于隔離控制的按鈕)LG7/8范圍:緊急停止、接觸器和高達9KW的熱磁斷路器
可用于非換向和換向啟動器。(LG8倒車范圍)
為LG7K09和LG8K09配備欠壓保護,或可為LG7K06和LG8K06增加欠壓保護
可鎖定緊急停止
短路和過載保護。
GV2 SN指示燈是可選的,可以添加
知識產權55度保護
符合國際電工委員會60947-4-1和國際電工委員會60204-1(機械安全-機械電氣設備)
對于380至415伏之間的電源電壓,控制電路在相位之間預先布線。對于其他電源電壓,控制電路必須由客戶接線
帶整體變壓器的封閉式安全電機啟動器(帶隔離器功能的按鈕控制)LJ7/8范圍:4KW以下的緊急停止、接觸器和熱磁斷路器
三相(380至400伏50赫茲)變壓器預接線選項
可用于非換向和換向啟動器。(LJ8倒車范圍)
LJ7K09和LJ8K09配備有欠壓保護,LJ7K06和LJ8K06可增加欠壓保護
可鎖定緊急停止
短路和過載保護。
如果需要,允許在控制電路中連接無電壓觸點的端子
符合國際電工委員會60947-4-1的IP 55保護等級
符合國際電工委員會60204-1(機械安全-機械電氣設備)利益緊湊的節省空間設計
符合機器IEC 60204-1的嚴格安全要求
完全防止電壓下降、過載、短路
應用程序
泰斯LG/LJ封閉式安全電機啟動器可用于工業、基礎設施和建筑以及需要以下設備的所有類型的應用:
DOL電機啟動或停止
機器控制電路的有載斷開
緊急停止
防止過載
短路保護
附加鏈接
LG1D122N716 TeSys LG - enclosed DOL starter - 9...14 A - 415 V AC coil
LG7K06Q706 TeSys LG - enclosed DOL starter - 1...1.6 A - 380/400 V AC coil
LG1D122V716 TeSys LG - enclosed DOL starter - 9...14 A - 400 V AC coil
LG7K06N707 TeSys LG - enclosed DOL starter - 1.6...2.5 A - 400/415 V AC coil
LG1D182V720 TeSys LG - enclosed DOL starter - 13...18 A - 400 V AC coil
LG1K065M702 TeSys LG - enclosed DOL starter - 0.16...0.25 A - 220/230 V AC coil
LG1K065M706A37 TeSys LG - enclosed DOL starter - 1...1.6 A - 220/230 V AC coil - mushroom head
LG1K065M708 TeSys LG - enclosed DOL starter - 2.5...4 A - 220/230 V AC coil
LG1K065M707A37 TeSys LG - enclosed DOL starter - 1.6...2.5 A - 220/230 V AC coil - mushroom
LG1K065P708 TeSys LG - enclosed DOL starter - 2.5...4 A - 230 V AC coil
LG1K065N703 TeSys LG - enclosed DOL starter - 0.25...0.40 A - 400/415 V AC coil
LG1K065N704 TeSys LG - enclosed DOL starter - 0.40...0.63 A - 400/415 V AC coil
LG1K065Q708 TeSys LG - enclosed DOL starter - 2.5...4 A - 380/400 V AC coil
LG1K065N705 TeSys LG - enclosed DOL starter - 0.63...1 A - 400/415 V AC coil
LG1K065N708 TeSys LG - enclosed DOL starter - 2.5...4 A - 400/415 V AC coil
LG1K065N707 TeSys LG - enclosed DOL starter - 1.6...2.5 A - 400/415 V AC coil
LG1K065P702 TeSys LG - enclosed DOL starter - 0.16...0.25 A - 230 V AC coil
LG1K065P703 TeSys LG - enclosed DOL starter - 0.25...0.40 A - 230 V AC coil
LG1K065P704 TeSys LG - enclosed DOL starter - 0.40...0.63 A - 230 V AC coil
LG7K06B708 TeSys LG - enclosed DOL starter - 2.5...4 A - 24 V AC coil
LG1K065M710 TeSys LG - enclosed DOL starter - 4...6.3 A - 220/230 V AC coil
LG1K065P705 TeSys LG - enclosed DOL starter - 0.63...1 A - 230 V AC coil
LG1K065P706 TeSys LG - enclosed DOL starter - 1...1.6 A - 230 V AC coil
LG1K065P710 TeSys LG - enclosed DOL starter - 4...6.3 A - 230 V AC coil
LG1K065V702 TeSys LG - enclosed DOL starter - 0.16...0.25 A - 400 V AC coil
LG1K065Q710 TeSys LG - enclosed DOL starter - 4...6.3 A - 380/400 V AC coil
LG1K065V703 TeSys LG - enclosed DOL starter - 0.25...0.40 A - 400 V AC coil
LG1K065N710 TeSys LG - enclosed DOL starter - 4...6.3 A - 400/415 V AC coil
LG1K065V704 TeSys LG - enclosed DOL starter - 0.40...0.63 A - 400 V AC coil
LG1K065V705 TeSys LG - enclosed DOL starter - 0.63...1 A - 400 V AC coil
LG1K065V706 TeSys LG - enclosed DOL starter - 1...1.6 A - 400 V AC coil
LG1K065V707 TeSys LG - enclosed DOL starter - 1.6...2.5 A - 400 V AC coil
LG1K065V710 TeSys LG - enclosed DOL starter - 4...6.3 A - 400 V AC coil
LG1K095M7 TeSys LG - enclosed DOL starter - 9 A - 220/230 V AC coil
LG1K095M714 TeSys LG - enclosed DOL starter - 6...10 A - 220/230 V AC coil
LG7D18N720 TeSys LG - enclosed DOL starter - 13...18 A - 415 V AC coil
LG1K095P714 TeSys LG - enclosed DOL starter - 6...10 A - 230 V AC coil
LG7K06B702 TeSys LG - enclosed DOL starter - 0.16...0.25 A - 24 V AC coil
LG7K06B703 TeSys LG - enclosed DOL starter - 0.25...0.40 A - 24 V AC coil
LG1K095Q714 TeSys LG - enclosed DOL starter - 6...10 A - 380/400 V AC coil
