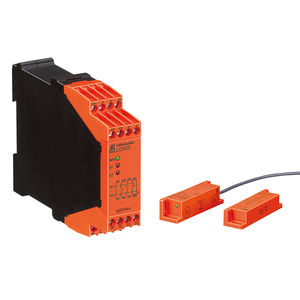

安全門模塊SAFEMASTER All products mentioned comply with the safety category 4 acc. to EN 954. |
| Function | 1-channel/
2-channel | Output contacts,
max. | Breaking current Ith [A], max. | cross fault
detection | nominal voltage | Detachable
terminals | Width
[mm] | Type |
|---|
|
|
|
|
| DC | AC |
|
|
|
|---|
| Safety gate monitor, also for low loads | 2 | 2NO | 10 A |
| + | + |
| 45 | BD 5985N |
Emergency stop module/
safety gate monitor | 1; 2 | 2NO | 10 A | + | + | + |
| 45 | BD 5987 |
Safety gate monitor
for applications acc. to EN 201 | 2 | 3NO | 5 A | + | + |
| + | 45 | BH 5901 |
Emergency stop module/
safety gate monitor | 1; 2 | 3NO | 7 A | + | + | + | + | 22.5 | BG 5925/920 |
Emergency stop module/
safety gate monitor | 1; 2 | 3NO, 1NC | 10 A |
| + | + |
| 100 | BN 5930.48 |
Emergency stop module/
safety gate monitor | 1; 2 | 3NO, 1NC | 10 A |
| + | + |
| 100 | BN 5983 |
Emergency stop module/
safety gate monitor | 1; 2 | 3NO, 1NC | 10 A | + |
| + |
|
| BN 5930.48/203,
BN 5930.48/204 |
Emergency stop module/
safety gate monitor | 1; 2 | 3NO, 1NC | 10 A | + | + | + |
| 45 | BD 5935 |
Emergency stop module with delay
up to 600s/Safety gate monitor | 1; 2 | 3NO, 1NC,
1NO contact delayed | 10 A | + | + | + | + | 100 | BO 5988.47 |
Emergency stop module with delay
up to 300s/Safety gate monitor | 1; 2 | 3NO,
3NO contact delayed | 5 A | + | + |
| + | 45 | BH 5928 |
Emergency stop module with delay
up to 300s/Safety gate monitor | 1; 2 | 3NO,
3NO contact delayed | 5 A | + |
| + | + | 67.5 | BI 5928 |
Emergency stop module/
safety gate monitor | 1; 2 | 4NO | 5 A | + | + | + | + | 22.5 | LG 5925 |
Emergency stop module/
safety gate monitor | 1; 2 | 6NO, 1NC | 10 A | + | + | + | + | 100 | BO 5988.61 |
NO = normally open contact, NC = normally closed contact, NO contact delayed For several monitored safety gates in combination with further safety functions see SAFEMASTER C and SAFEMASTER M |
