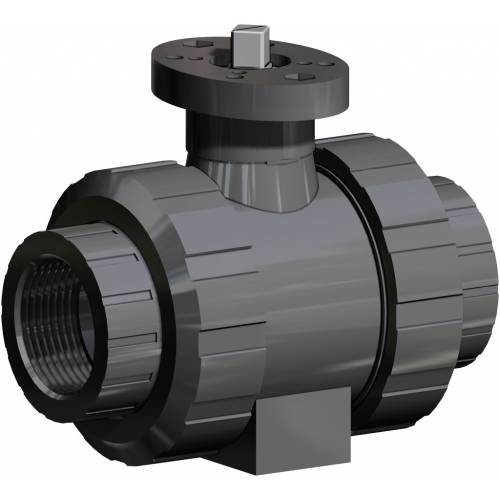

OMAL雙向全孔PVC球閥

一般特征:
工作溫度:0℃至80℃
工作壓力:見圖表
應用:與聚氯乙烯相容的化學和各種流體
連接:
內螺紋符合德國工業標準/國際標準化組織228/1；
膠合ISO 727 UNI EN 1452
PN 16至20癈，如果分類耐化學性，使用帶膠合端的用過的流體，PN10帶螺紋端。

應要求:
請聯系我們的銷售部門。
產品資料
1-5-5-1-ITEM615-616.pdf

立即咨詢下一個產品

描述
參數
設備圖片

意大利歐瑪爾(OMAL.S.P.A.)自控閥門公司，是集設計與制造為一體的自主研發型閥門制造公司，在執行器和自控閥門的設計和制造方面有著30年的經驗。OMAL(歐瑪爾)自控閥門公司系出名門，由意大利知名工業企業BONOMI集團傳人BONOMI-OMAL先生于1981年創立，并于當年推出具有劃時代意義的“單氣缸雙活塞-撥叉式變扭矩” 氣動執行器，榮獲多項專利，具備“小體積-大扭矩”的突出特點，使控制更為可靠方便。依托優異的品質和先進的技術，OMAL(歐瑪爾)迅速成長為歐洲撥叉式氣動執行器供應商，為客戶提供更為專業的自控服務。1990年，OMAL(歐瑪爾)相繼推出自控球閥、自控蝶閥、自控角座閥等多品種全型號自控閥門，1998年，OMAL(歐瑪爾)VIP梭閥榮獲歐洲工業設計金獎。憑借著對技術與品質的執著追求，OMAL執行器和自控閥門已處于歐洲領先地位，也由最初的專業執行器制造商，成長為歐洲著名的自控閥門公司。對品質的嚴格要求和對技術的不斷創新，是OMAL產品領先世界的重要原因。OMAL自控閥門產品覆蓋所有的工業領域，能滿足各種嚴酷惡劣的條件及高標準用戶的要求，其產品有：球閥、蝶閥、角座閥、梭閥以及執行器等。

OMAL雙向全孔PVC球閥

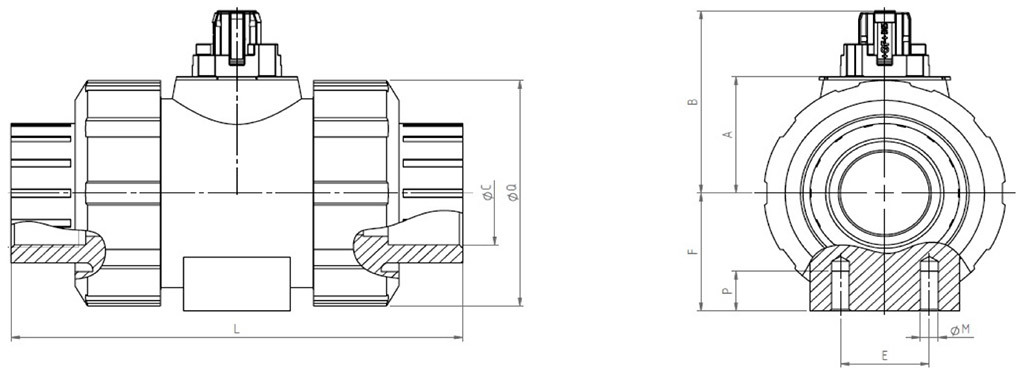

DIMENSIONS
SIZE		L Threaded	L Glued	?Q	?C Threaded	?C Glued	A	B	E	F	?M	P
DN [mm]	[inch]	L Threaded	L Glued	?Q	?C Threaded	?C Glued	A	B	E	F	?M	P
DN 10	3/8"	92	95	50	3/8"	16	26,1	41	25	27	6	12
DN 15	1/2"	95	100	50	1/2"	20	26,1	41	25	27	6	12
DN 20	3/4"	110	114	58	3/4"	25	30	48,5	25	30	6	12
DN 25	1"	123	127	68	1"	32	35,2	55	25	36	6	12
DN 32	1" 1/4	146	146	84	1"1/4	40	44	66,9	45	44	8	15
DN 40	1" 1/2	157	152	97	1"1/2	50	50,2	73,1	45	51	8	15
DN 50	2"	183	177	124	2"	63	62	89,4	45	64	8	15
DN 65	2" 1/2	233	233	166	2"1/2	75	84,1	126	70	85	8	15
DN 80	3"	254	254	200	3"	90	95,9	138	70	105	8	15
DN 100	4"	301	301	238	4"	110	109,9	152	120	123	12	22

OMAL雙向全孔PVC球閥

		CON ATTUATORE PNEUMATICO DOPPIO EFFETTO
			*WITH DOUBLE ACTING PNEUMATIC ACTUATOR*
MISURA	*SIZE*	ARTICOLO valvola filettata		ARTICOLO valvola da incollare	ATTUATORE	KIT montaggio	L [mm]	H [mm]	Kg
DN [mm]	[inch]	*ITEM CODE threaded valve*		*ITEM CODE to be glued valve*	*ACTUATOR*	*Mounting KIT*	L [mm]	H [mm]	Kg
DN [mm]	[inch]	*ITEM CODE threaded valve*		*ITEM CODE to be glued valve*	*ACTUATOR*	*Mounting KIT*

10	3/8"	DG615H003		DG616H083	DAN0015412S	KCF045453	159,0	119,0	1,0
15	1/2"	DG615H004		DG616H084	DAN0015412S	KCF045453	159,0	119,0	1,0
20	3/4"	DG615H005		DG616H085	DAN0015412S	KCF045454	159,0	128,0	1,2
25	1"	DG615H006		DG616H086	DAN0015412S	KCF045454	159,0	133,0	1,3
32	1"1/4	DG615H007		DG616H087	DAN0015412S	KCF045455	159,0	145,0	1,6
40	1"1/2	DG615H008		DG616H088	DAN0030411S	KCF045678	174,2	158,0	2,0
50	2"	DG615H009		DG616H089	DAN0030411S	KCF045456	174,2	175,0	2,7
65	2"1/2	DG615H010		DG616H090	DAN0030411S	KCF045457	174,2	250,0	4,7
80	3"	DG615H011		DG616H091	DAN0045412S	KCF045457	188,5	267,0	6,8
100	4"	DG615H012		DG616H092	DAN0060412S	KCF055459	198,0	265,0	10,5

		CON ATTUATORE PNEUMATICO SEMPLICE EFFETTO
			*WITH SPRING RETURN PNEUMATIC ACTUATOR*
MISURA	*SIZE*	ARTICOLO valvola filettata		ARTICOLO valvola da incollare	ATTUATORE		KIT montaggio	L [mm]	H [mm]	Kg
DN [mm]	[inch]	*ITEM CODE threaded valve*		*ITEM CODE to be glued valve*	*ACTUATOR*		*Mounting KIT*	L [mm]	H [mm]	Kg
DN [mm]	[inch]	*ITEM CODE threaded valve*		*ITEM CODE to be glued valve*	*ACTUATOR*		*Mounting KIT*

10	3/8"	SG615H003		SG616H083	SRN0015402S		KCF045453	233,2	126,0	1,5
15	1/2"	SG615H004		SG616H084	SRN0015402S		KCF045453	233,2	126,0	1,5
20	3/4"	SG615H005		SG616H085	SRN0015402S		KCF045454	233,2	135,0	1,7
25	1"	SG615H006		SG616H086	SRN0015402S		KCF045454	233,2	140,0	1,8
32	1"1/4	SG615H007		SG616H087	SRN0015402S		KCF045455	233,2	152,0	2,0
40	1"1/2	SG615H008		SG616H088	SRN0030402S		KCF055461	258,8	168,0	3,0
50	2"	SG615H009		SG616H089	SRN0030402S		KCF055462	258,8	185,0	3,7
65	2"1/2	SG615H010		SG616H090	SRN0030402S		KCF055463	258,8	260,0	5,7
80	3"	SG615H011		SG616H091	SRN0053401S		KCF075498	304,2	287,0	8,6
100	4"	SG615H012		SG616H092	SRN0060401S		KCF075499	338,5	282,0	12,3
Dimensionamento degli attuatori pneumatici fatto considerando una pressione minima di alimentazione pari a 5,6 barg.						Sizing of pneumatic actuators by minimum pressure rate 5,6 barg.
